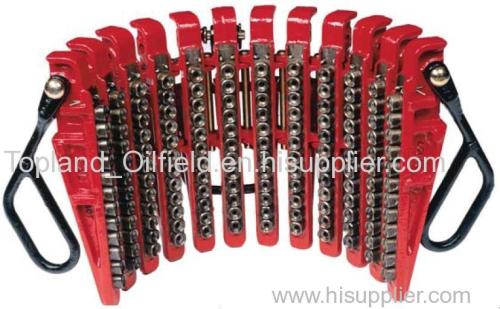

Varco Type CMS-XL Casing Slips and Slip Insert Circular Buttons Alloy Steel Forged API 7K STD

Price:	1.0 USD
Payment Terms:	T/T
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: No-23

Packing: Standard Packing

Type: Drilling Rig

Means of Transport: Ocean,Land,Air

Delivery Date: According to order

Application: Oil

CMS-XL slips are manufactured from castings, reinforced to take severe service.

The self-centering full wraparound grip prevents damage to casing. With certain simple adjustments, the CMS-XL can accommodate casing from 65/8 " to 30" OD. All Varco BJ slips have an API taper of 4"/ft on the diameter.

CMS-XL EXTRA LONG MULTI-SEGMENT CASING SLIPS TECHNICAL SPECIFICATIONS

CMS-XL
Casing OD(in)		6 5/8"	7"	7 5/8"	8 5/8"	9 5/8"	10 3/4"	11 3/4"
P/N: Slip Complete w/safety flex Handles		5315	5301	5303	5305	5307	5309	5311
WT:Complete.Ibs(KG)		196(89)	184(84)	181(82)	181(82)	192(87)	209(95)	260(118)
Total Segments		12	12	13	13	14	15	17
CIRCULAR BUTTONS	P/N	2628-144	2619-144	2630-144	2630-156	2630-168	2630-180	2627-204
	Wt.Ibs(KG)	36(16)	36(16)	24(11)	26(12)	28(13)	30(14)	51(23)
	Qty.	144	144	144	156	168	180	204

CMS-XL
Casing OD(in)		13 3/8"	16"	18 5/8"	20"	24"	26"	30"
P/N: Slip Complete w/safety flex Handles		5313	5325	5333	5329	5331	5346	5342
WT:Complete.Ibs(KG)		247(113)	308(140)	367(167)	383(174)	443(201)	486(220)	546(248)
Total Segments		18	21	25	26	30	33	37
CIRCULAR BUTTONS	P/N	2630-216	2631-252	2626-300	2631-312	2631-360	2631-396	2631-444
	Wt.Ibs(KG)	36(16)	43(19.5)	60(27)	52(23)	60(27)	64(29)	72(32.5)
	Qty.	216	252	300	312	360	396	444
